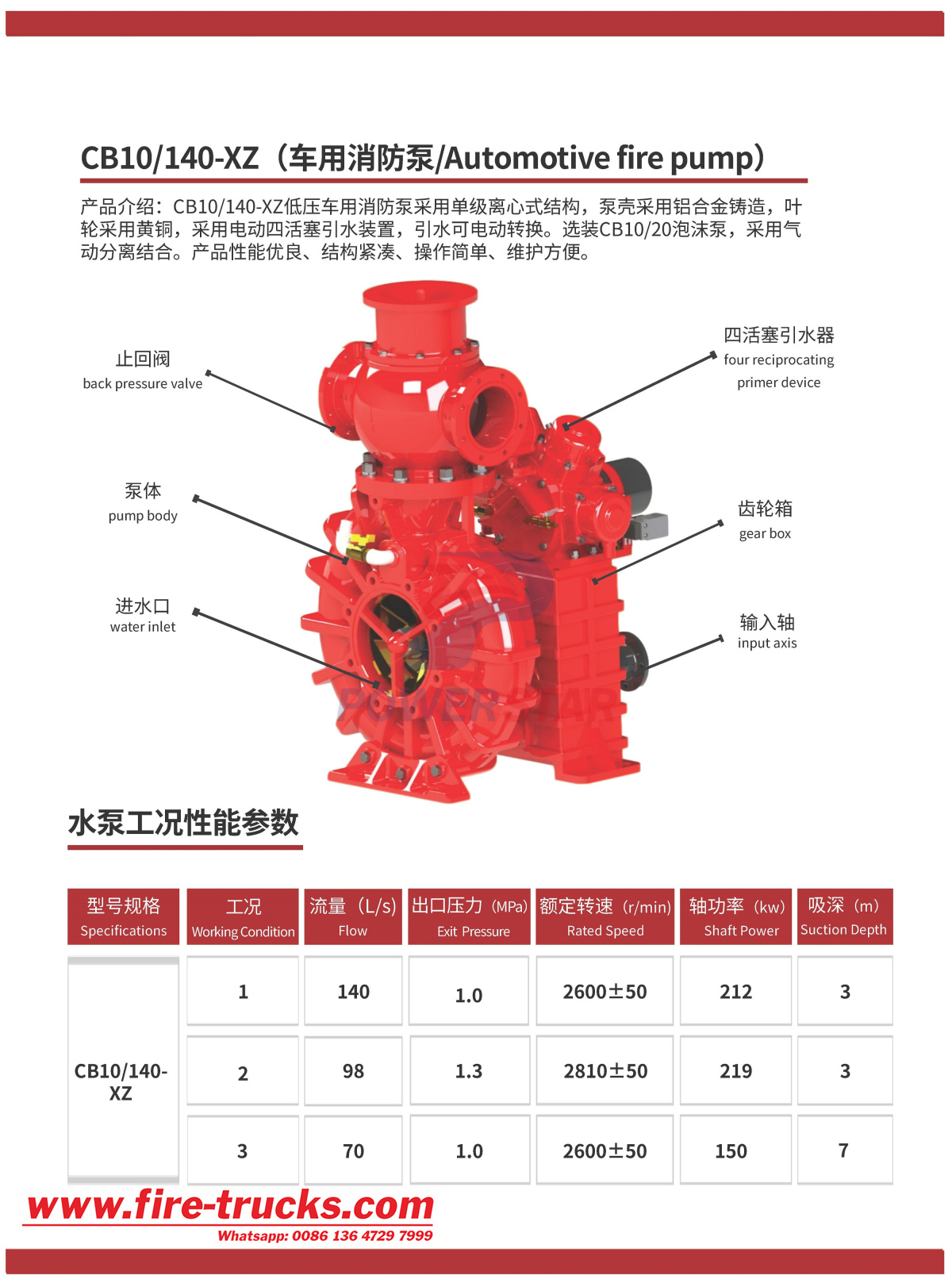

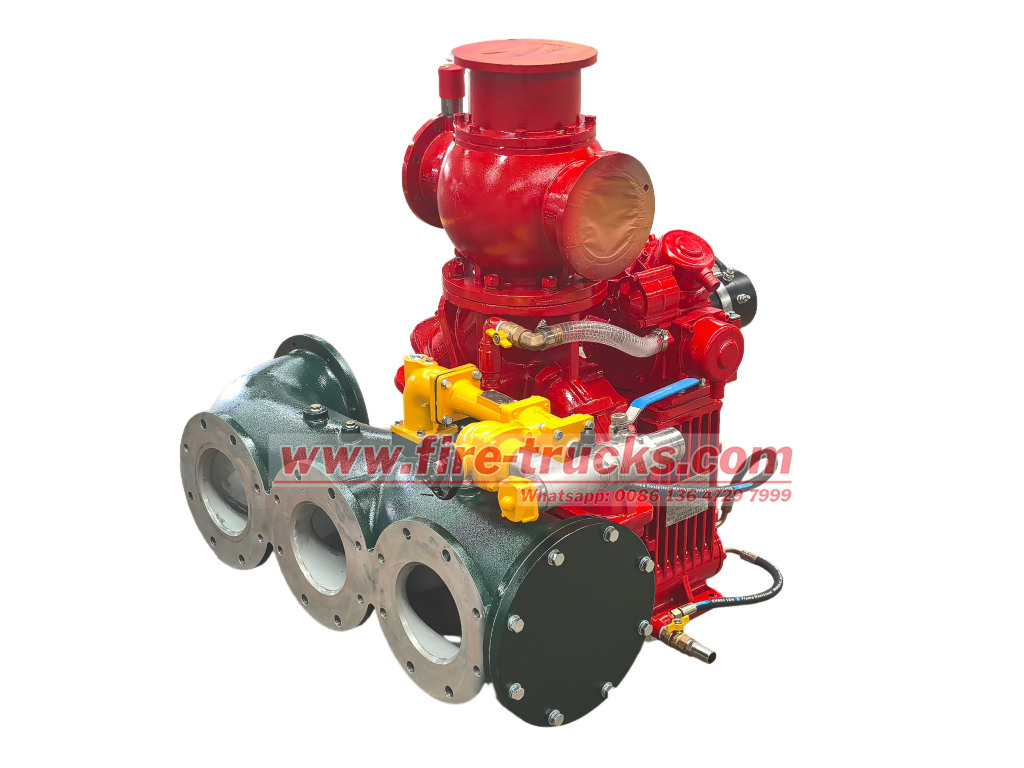

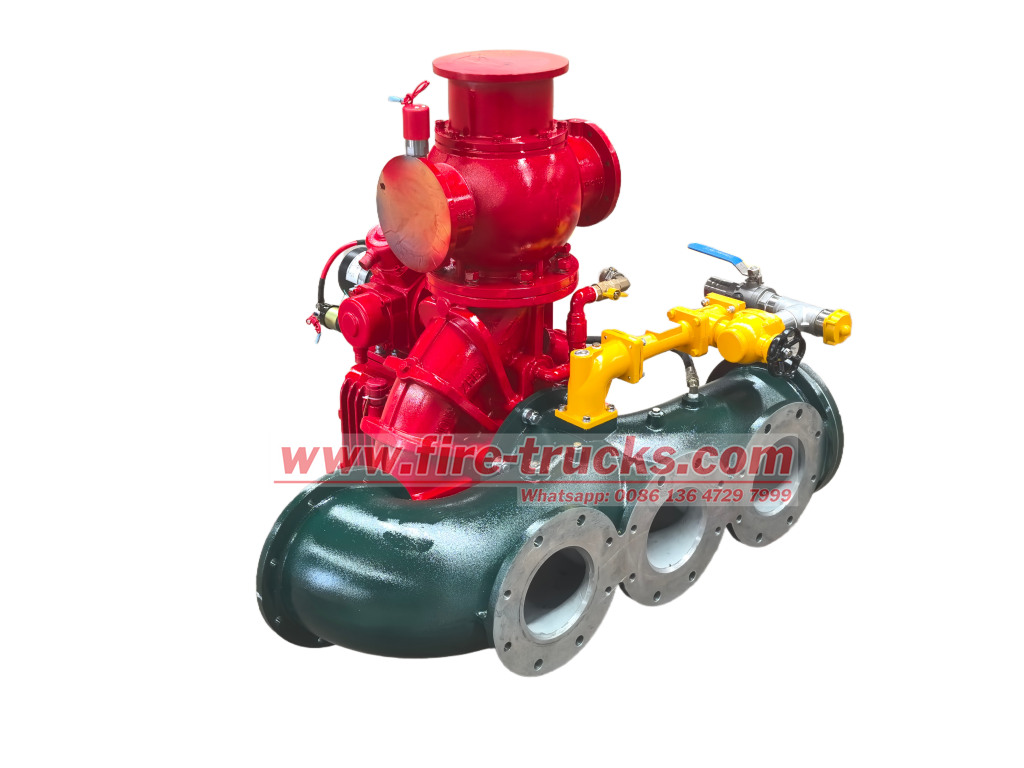

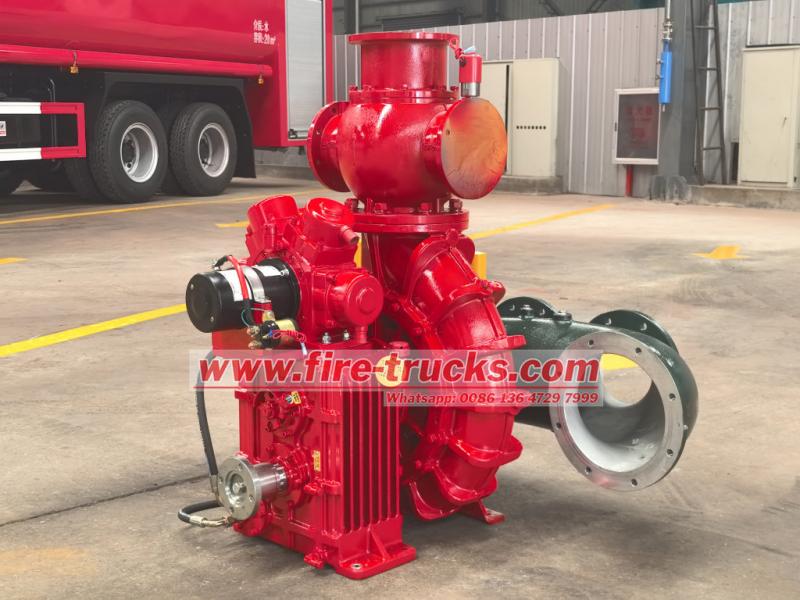

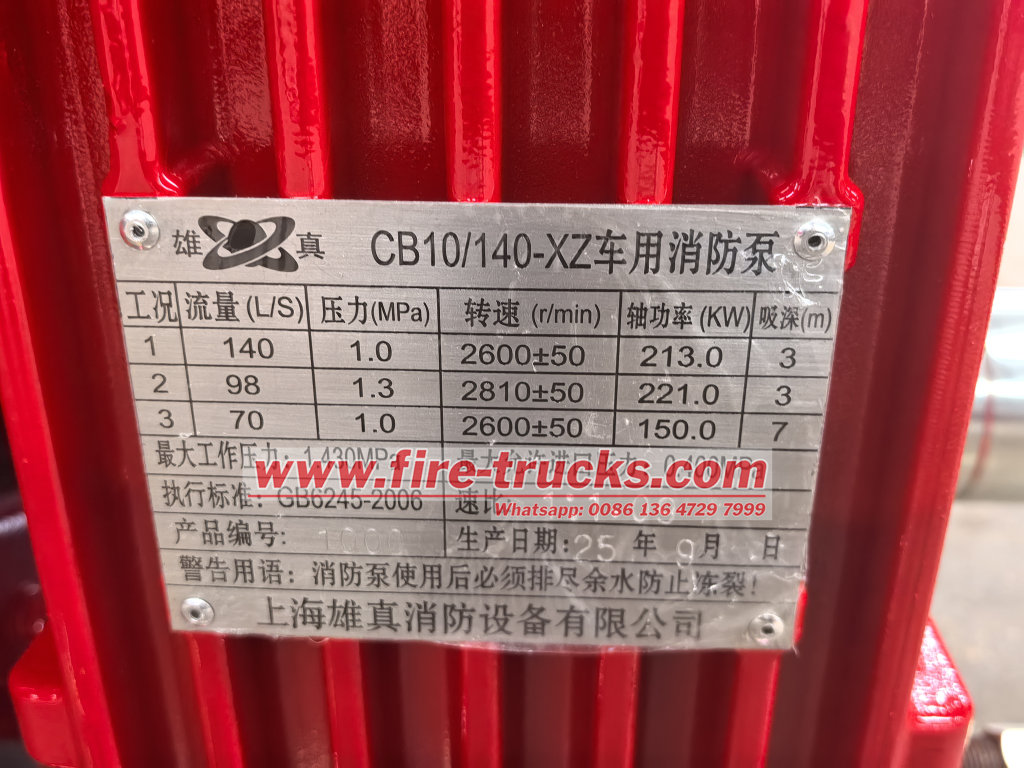

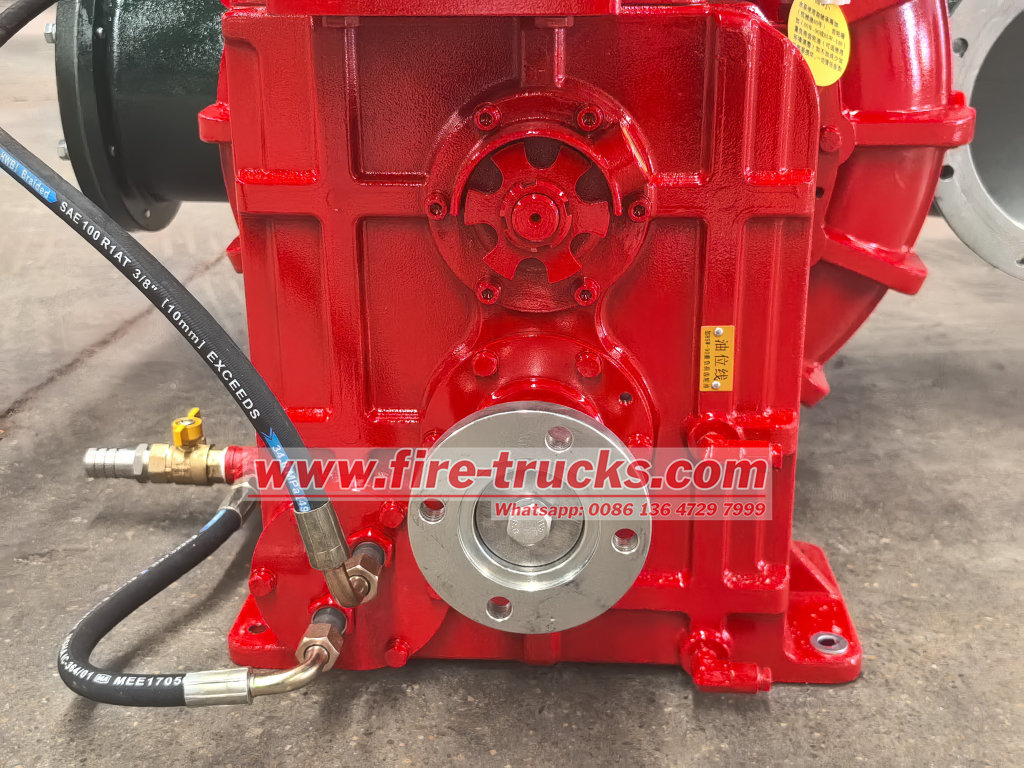

Құтқару өрт сөндіру көлігі Өрт сорғысы CB10/140-XZ

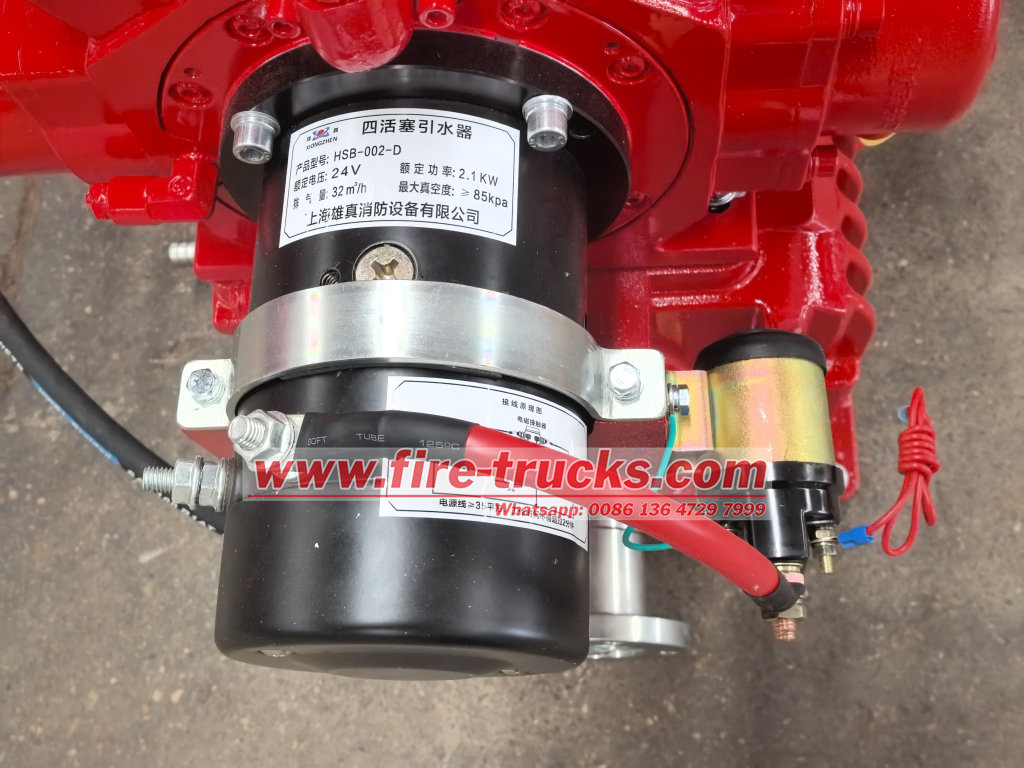

The CB10 30 fire pump adopts a single-stage centrifugal pump structure with a two-piston priming device. The priming device is activated by the pump's rotation and automatically disengages once the required pressure is reached. The product operates stably and is reliable in quality, with various inlet and outlet pipe options available.

The CB10/60 low-pressure vehicle fire pump is characterized by excellent performance, high efficiency, compact structure, aesthetic design, simple operation, and convenient maintenance. It is suitable for medium and heavy-duty water tank fire trucks, foam fire trucks, and water tower fire trucks, etc.

The Fire Truck Foam Cannon PL48 is a manual fire monitor that can spray both foam and water. It has a rated flow rate of 48 L/s, a rated pressure of 0.8 MPa, a water spray range of ≥70 m, and a foam spray range of ≥60 m. The monitor can rotate 360° horizontally and has an elevation angle of -30° to 70°, offering flexible operation.

The Isuzu FVR 6 cubic meter foam fire truck uses an Isuzu FVR chassis with a 4500mm wheelbase. It is equipped with an Isuzu 6HK1-TCL engine, a Fast 8-speed transmission, a 5-ton carbon steel water tank (with anti-corrosion treatment), a 1-ton 304 stainless steel foam tank, a Shanghai Xiongzhen CB10/40 low-pressure fire pump (rear-mounted pump room), a Chengdu West PL32 fire monitor, and a 30-meter medium-pressure hose reel in the pump house.

This Isuzu 3cbm water tanker fire truck is based on an Isuzu 100P 4x4 double-cab chassis with a 3360mm wheelbase. It is equipped with an Isuzu 4KB1-TCG60 engine and an MSB 5-speed gearbox. The front of the superstructure houses the equipment compartment, the middle section contains a 300L carbon steel water tank, and the rear is the pump room, equipped with a CB10/60-XZ fire pump, control panel, fire hoses, firefighting equipment, etc. A PS8/30W fire monitor is mounted on the roof.

HOWO 4×4 өрт сөндіру көлігі – SINOTRUK HOWO 4×4 жол талғамайтын шасси негізінде жасалған кәсіби өрт сөндіру көлігі. Ол жоғары сапалы өрт сорғымен, 6 текше метрлік су ыдысымен және 2 текше метрлік пеноплёнкамен, 70 метрге дейін суды ағызуға қабілетті өрт мониторымен және модульдік жабдық бөлімімен жабдықталған. 380 ат күші қозғалтқышы бар, толық емес жұмыс уақытында жұмыс істейтін төрт доңғалақты жетек жүйесі және жол талғамайтын шиналар бар бұл көлік барлық жердегі тамаша ұтқырлықты көрсетеді. Ормандар, мұнаймен байланысты өрттер, геологиялық апаттар және тар қалалық аумақтар сияқты өртті сөндіру сценарийлері үшін арнайы жасалған, ол жылдам әрекет ететін мобильді өрт сөндіру жабдығы ретінде қызмет етеді.

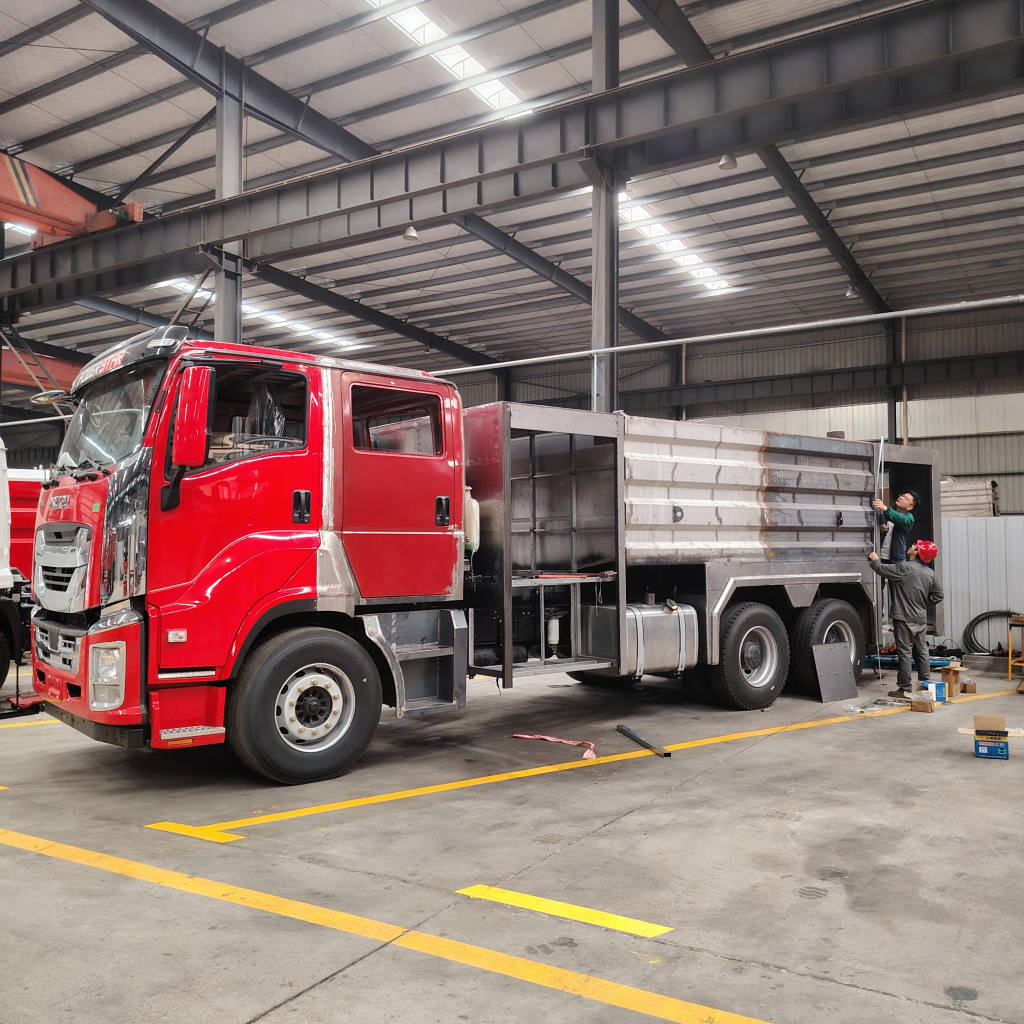

The Isuzu GIGA 6X4 10 cubic meter foam fire truck is based on the Isuzu GIGA 6X4 chassis, with a wheelbase of 4600mm+1370mm. It is equipped with an Isuzu 6UZ1-TCG61 engine and a Fast 12-speed transmission. The front of the superstructure houses the equipment compartment, the middle section contains an 8500L carbon steel water tank and a 1500L stainless steel foam tank, and the rear is the pump room, equipped with a CB10/60-XZ fire pump, control panel, fire hoses, firefighting equipment, etc. A PL8/48 fire monitor is located on the roof.

The Sinotruk 6 CBM CAFS fire rescue truck is modified from the Sinotruk C5H chassis, with a 4700mm wheelbase. It is equipped with a Sinotruk MC07H.35-60 engine, a Fast 8-speed gearbox, and features a 5 cubic meter water tank, a 350KG type A foam tank, and a 550KG type B foam tank. The vehicle is equipped with a high-performance fire pump, fire monitor, and CAFS system, and is easy to operate. This vehicle can be used for comprehensive emergency rescue functions such as fire fighting, reconnaissance, demolition, rescue, lighting, and protection.
