A dry powder fire truck and a compressed air foam system (CAFS) fire truck may both be used for fighting flammable liquid and gas fires. Both are specialized vehicles designed to handle Class B and Class C hazards. However, their extinguishing agents, working principles, and application scenarios are fundamentally different.

This article explains the key differences between dry powder fire trucks and CAFS fire trucks from multiple perspectives: extinguishing mechanism, working principle, key components, performance parameters, application scenarios, and cost.

» I. How Different Extinguishing Agents Work?

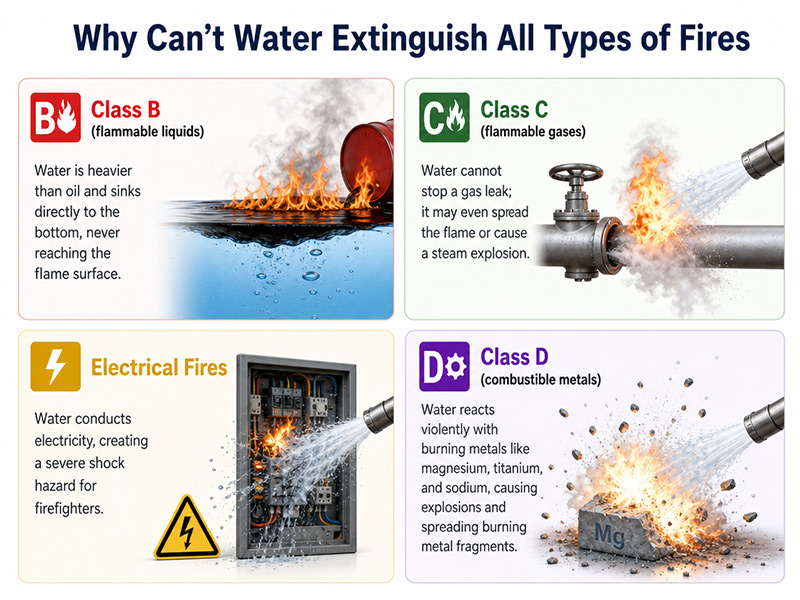

1.Why Can't Water Extinguish All Types of Fires

• Class B (flammable liquids): Water is heavier than oil and sinks directly to the bottom, never reaching the flame surface.

• Class C (flammable gases): Water cannot stop a gas leak; it may even spread the flame or cause a steam explosion.

• Electrical fires: Water conducts electricity, creating a severe shock hazard for firefighters.

• Class D (combustible metals): Water reacts violently with burning metals like magnesium, titanium, and sodium, causing explosions and spreading burning metal fragments.

2.How Does Dry Powder Work?

• Chemical interruption: Dry powder particles interrupt the combustion chain reaction, stopping the fire almost instantly.

• Limited cooling: Unlike water or foam, dry powder provides very little cooling effect.

• No blanket: The powder does not form a lasting barrier; once it disperses, the fire may re-ignite if the fuel is still hot.

• Non-conductive: Dry powder is electrically non-conductive, making it safe for electrical fires.

3.How Does Compressed Air Foam (CAFS) Work?

• Blanketing: The foam covers the fuel surface, forming a dense physical barrier that blocks oxygen supply.

• Cooling: The foam contains a large amount of water; water evaporation absorbs heat, continuously carrying heat away from the fuel surface.

• Vapor suppression: The foam layer prevents fuel vapors from evaporating into the air, breaking the fuel-air mixing chain.

• Adhesion: CAFS foam sticks to vertical surfaces and ceilings, providing protection that water cannot achieve.

» II. Main Components of Each System

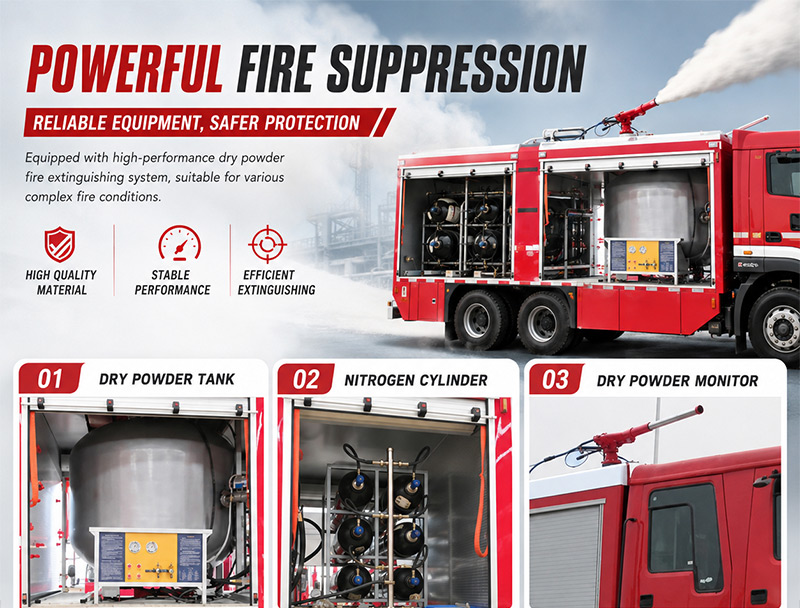

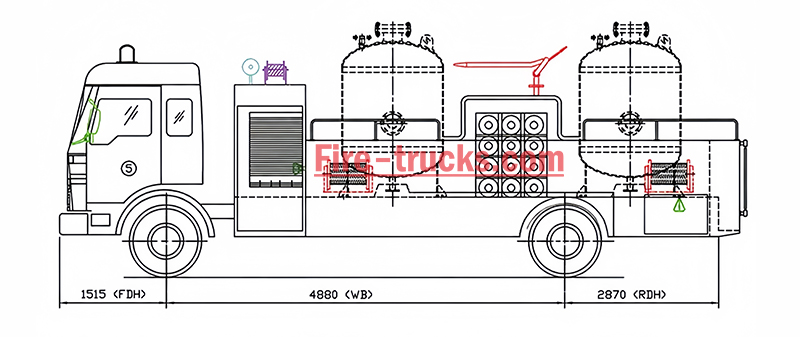

Dry Powder Fire Truck

Component	Description
Powder tank	Stores dry chemical powder (capacity: 2,000 - 10,000 kg)
Propellant gas cylinders	Store compressed nitrogen or air at high pressure (15-20 MPa)
Pressure regulator	Reduces gas pressure to safe operating level (1.5-2.5 MPa)
Powder discharge valve	Controls powder flow from tank to discharge line
Hoses and nozzles	Deliver powder to the fire; special nozzles prevent clogging
Control panel	Allows operator to pressurize tank, open valves, and control discharge

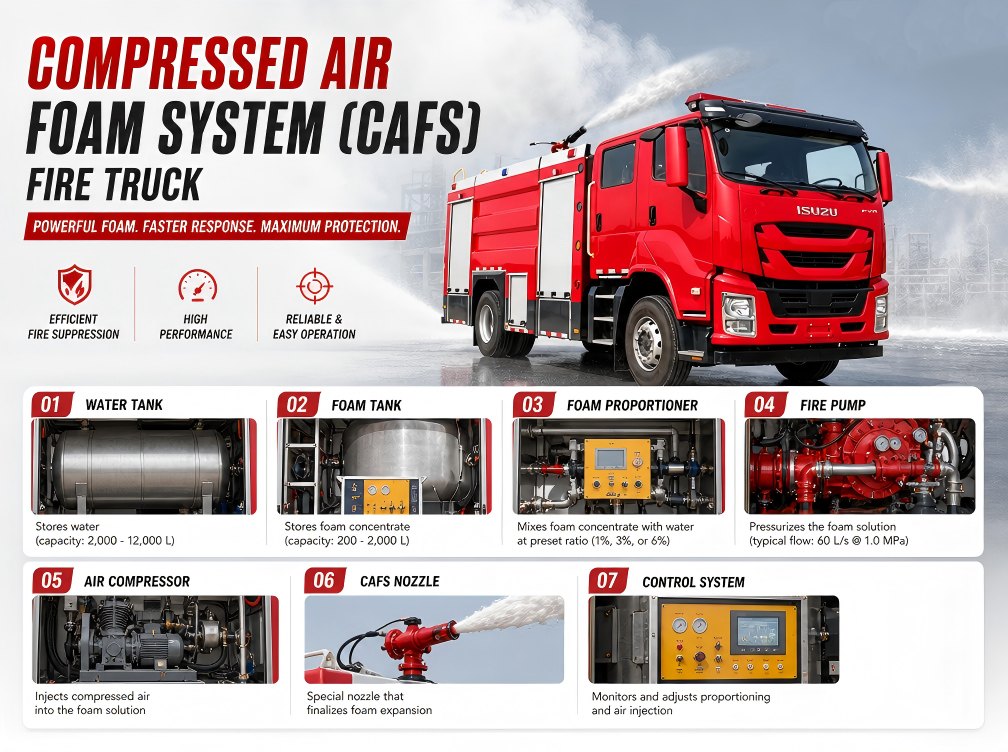

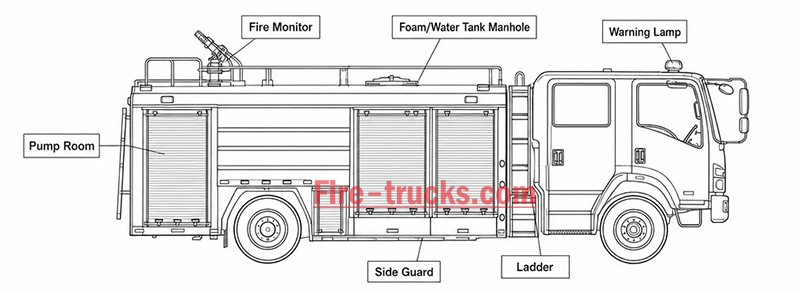

Compressed Air Foam System (CAFS) Fire Truck

Component	Description
Water tank	Stores water (capacity: 2,000 - 12,000 L)
Foam tank	Stores foam concentrate (capacity: 200 - 2,000 L)
Foam proportioner	Mixes foam concentrate with water at preset ratio (1%, 3%, or 6%)
Fire pump	Pressurizes the foam solution (typical flow: 60 L/s @ 1.0 MPa)
Air compressor	Injects compressed air into the foam solution
CAFS nozzle	Special nozzle that finalizes foam expansion
Control system	Monitors and adjusts proportioning and air injection

» III.How Extinguishing Agents Are Formed

Dry Powder Discharge

Compressed gas (nitrogen or air) is released from high-pressure cylinders
Gas passes through a pressure regulator and enters the powder tank
Pressurized gas pushes powder out of the tank through the piping system
Powder-gas mixture travels through hoses to the discharge nozzle
Powder is expelled as a dry cloud that interrupts the combustion chain reaction

CAFS Foam Formation

Water and foam concentrate are mixed by the proportioner at a precise ratio (1%, 3%, or 6%)
The foam solution is pressurized by the fire pump (typical pressure: 0.8-1.2 MPa)
Compressed air is injected into the foam solution downstream of the pump
The air-liquid mixture travels through the hose to a special CAFS nozzle
Inside the nozzle, the mixture is agitated and expanded into finished foam
The foam is discharged as a thick, stable blanket that sticks to surfaces

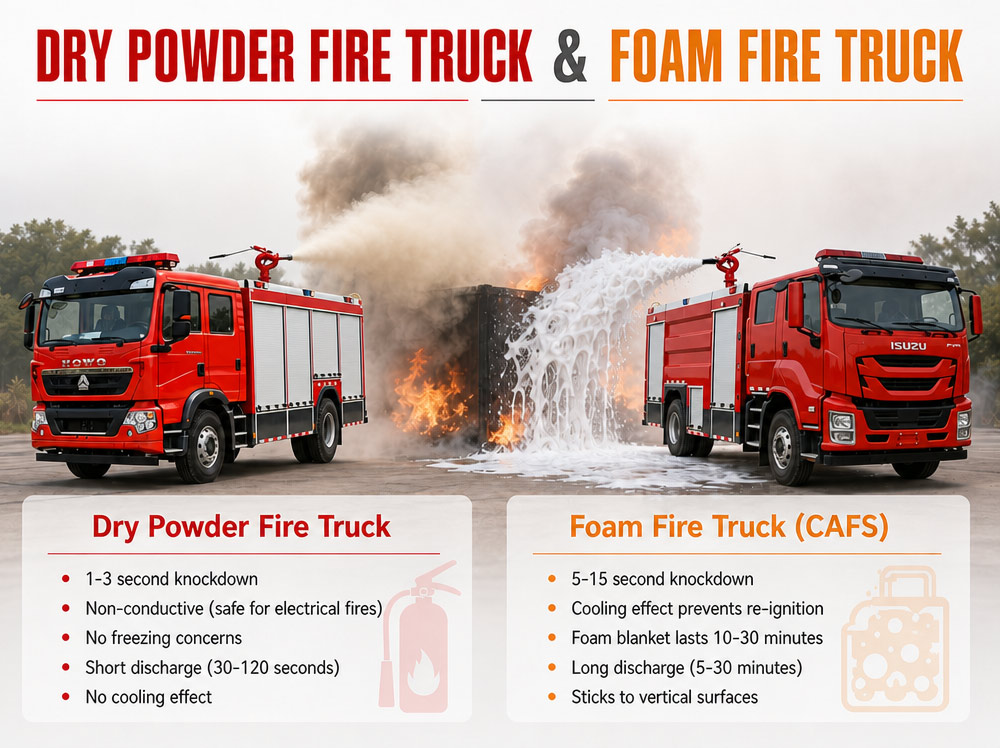

» IV. Dry Powder vs. CAFS: Key Comparison

1. Firefighting Speed

Parameter	Dry Powder	CAFS
Knockdown time on Class B fire	1-3 seconds	5-15 seconds
Speed advantage	Extremely fast	Fast but not immediate
Best scenario	Immediate knockdown required	Sustained suppression required

2. Cooling Capability

Parameter	Dry Powder	CAFS
Cooling effect	Minimal	High (water content absorbs heat)
Post-fire temperature reduction	Low	Significant
Re-ignition risk after application	High	Low

3. Range and Reach

Parameter	Dry Powder	CAFS
Typical range	10-30 meters	30-50 meters

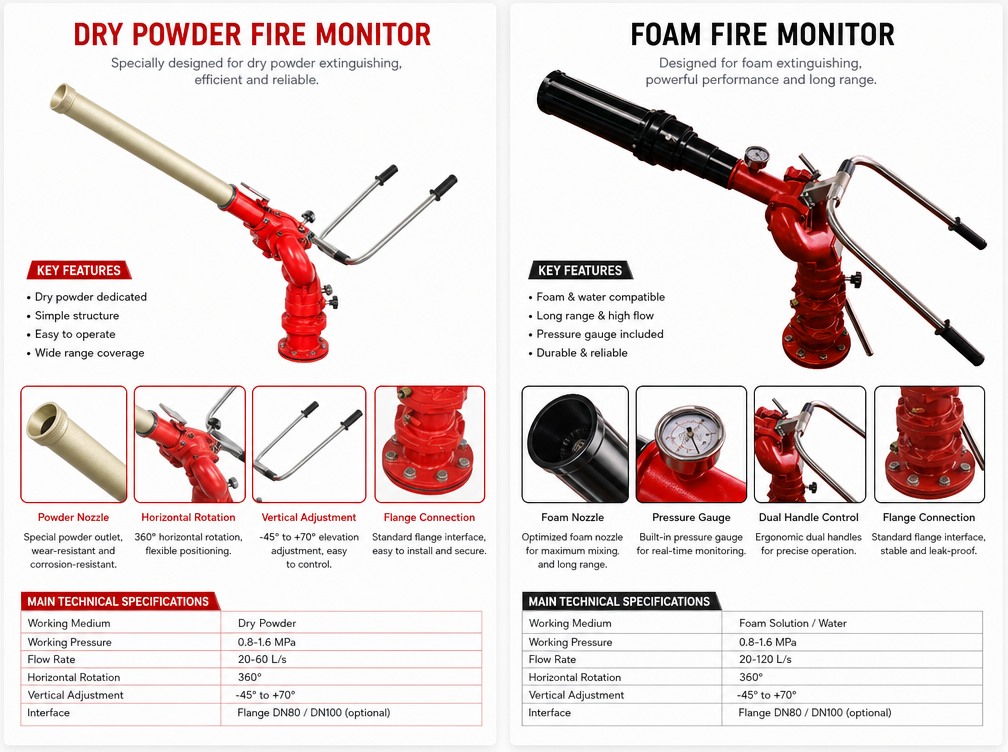

Maximum range (monitor)	40-60 meters	50-70 meters
Ability to reach elevated fires	Good	Excellent

4. Duration of Protection

Parameter	Dry Powder	CAFS
Discharge duration	30-120 seconds	5-30 minutes
Blanket stability	No blanket; powder disperses quickly	Foam blanket lasts 10-30 minutes
Re-ignition window	Immediately after powder disperses	Low risk while foam blanket remains

5. Electrical Safety

Parameter	Dry Powder	CAFS
Conductivity	Non-conductive	Water content conducts electricity
Safe for electrical fires	Yes	No

6. Temperature and Environmental Limits

Parameter	Dry Powder	CAFS
Freezing concerns	None	Yes (water in solution can freeze)
Wind sensitivity	High	Moderate
Visibility during application	Poor (powder cloud)	Good (no dust cloud)

» V. Application Scenarios

Scenario	Dry Powder	CAFS	Recommendation
Gas pipeline fire	Excellent (interrupts gas flame)	Moderate (foam less effective on gas)	Dry powder
Electrical substation fire	Excellent (non-conductive)	Not recommended	Dry powder
Oil refinery with large tanks	Good (fast knockdown, but may re-ignite)	Excellent (cooling + blanket)	CAFS
Airport jet fuel fire	Excellent (fast knockdown)	Excellent (sustained cooling)	Both suitable
Wildland-urban interface	Poor (ineffective on Class A)	Excellent (Class A foam)	CAFS
Industrial warehouse (mixed fuels)	Moderate	Excellent	CAFS
Cold climate operation	Excellent (no freezing)	Moderate (freezing risk)	Dry powder
Extended firefighting operation	Poor (short duration)	Excellent (long duration)	CAFS

» VI. Advantages and Disadvantages Summary

Dry Powder Fire Truck

Advantages:

Extremely fast knockdown (1-3 seconds)
No freezing concerns
Non-conductive (safe for electrical fires)
Effective on Class B and C fires
Lower initial cost
Simpler system, easier maintenance

Disadvantages:

No cooling effect
High re-ignition risk
Short discharge duration (30-120 seconds)
Poor performance on Class A fires
Powder cloud reduces visibility
Wind-sensitive
Requires special D powder for metal fires

CAFS Fire Truck

Advantages:

Provides cooling (reduces re-ignition risk)
Foam blanket stays on surface (longer protection)
Effective on both Class A and Class B fires
Longer discharge duration (5-30 minutes)
Better visibility during application
Less wind-sensitive
Uses less water than traditional water-only methods
Foam sticks to vertical surfaces

Disadvantages:

Higher initial cost
More complex system (requires training)
Higher maintenance cost
Not suitable for electrical fires (water content conducts electricity)
Freezing risk in cold climates
Foam concentrate has shelf life

» VII. Conclusion

Dry powder fire trucks and CAFS fire trucks serve different purposes. The choice depends on the specific fire risks a department faces.

Choose a dry powder fire truck if:

Your primary risks are gas fires or electrical fires
You need extremely fast knockdown of flammable liquid fires
You operate in cold climates where freezing is a concern
Your budget is limited
You do not require cooling or sustained protection

Choose a CAFS fire truck if:

Your primary risks include Class A fires (wood, paper, structures) in addition to Class B
You need sustained firefighting operations requiring long discharge duration
You require cooling to prevent re-ignition
You operate in environments where water supply is limited (CAFS uses less water)
You need foam that sticks to vertical surfaces

From gas pipeline fires to oil refineries, from electrical substations to wildland-urban interfaces — understanding the performance differences between dry powder and CAFS ensures that fire departments select the right tool for their specific risks.
